上海武田機電,總部設在上海,在香港,德國,美國,日本均設有分公司,擁有良好的購銷渠道,歡迎來電咨詢 TEL:0086-21-51085793 |
| |
| Getriebetyp |
|
dw |
d
| Mt |
D
| I |
H
| MA |
|
|
Weight
|
| FG |
AG |
mm |
mm |
Nm |
mm |
mm |
mm |
Nm |
Z |
S |
kg |
| - |
02/03 |
30 |
36 |
570 |
72 |
18 |
23 |
12 |
5 |
M 6x20 |
0.5 |
| - |
12/13 |
35 |
44 |
780 |
80 |
20 |
25 |
12 |
7 |
M 6x20 |
0.6 |
| 0 |
- |
36 |
44 |
860 |
80 |
20 |
25 |
12 |
7 |
M 6x20 |
0.6 |
| - |
22/ 23 |
40 |
50 |
1160 |
90 |
22 |
27 |
12 |
8 |
M 6x25 |
0.8 |
| 0/ 1 |
- |
42 |
50 |
1380 |
90 |
22 |
27 |
12 |
8 |
M 6x25 |
0.8 |
| - |
32/ 33 |
50 |
60 |
2130 |
110 |
23 |
30 |
12 |
10 |
M 6x25 |
1.3 |
| 3 |
- |
52 |
62 |
2250 |
110 |
23 |
30 |
12 |
10 |
M 6x25 |
1.3 |
| - |
42/ 43 |
60 |
68 |
3150 |
115 |
23 |
30 |
12 |
10 |
M 6x25 |
1.4 |
| 5/7 |
52/ 53 |
70 |
80 |
4600 |
138 |
25 |
32 |
30 |
7 |
M 8x30 |
2.3 |
| 9 |
62/ 63 |
80 |
95 |
7400 |
150 |
30 |
38 |
30 |
9 |
M 8x35 |
2.8 |
| 11 |
- |
85 |
105 |
10200 |
185 |
39 |
50 |
59 |
9 |
M 10x40 |
6.1 |
| - |
72/ 73 |
90 |
105 |
11400 |
185 |
39 |
50 |
59 |
9 |
M 10x40 |
6.1 |
| 13 |
82/ 83 |
100 |
120 |
18000 |
215 |
42 |
54 |
59 |
12 |
M 10x40 |
8.8 |
| - |
92/ 93 |
110 |
130 |
25500 |
230 |
46 |
60 |
100 |
10 |
M 12x45 |
11 |
| 15 |
- |
110 |
135 |
24000 |
230 |
46 |
60 |
100 |
10 |
M 12x45 |
10.6 |
| - |
102/ 103 |
120 |
135 |
29000 |
230 |
46 |
60 |
100 |
10 |
M 12x45 |
10.6 |
| - |
112/ 113 |
130 |
150 |
42000 |
265 |
50 |
64 |
100 |
12 |
M 12x50 |
14.6 |
| 17 |
- |
125 |
155 |
36000 |
265 |
50 |
64 |
100 |
12 |
M 12x50 |
15 |

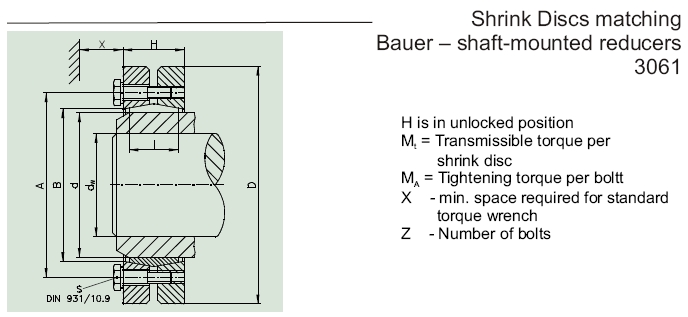

TAS3061 30×36 TAS3061 35×44 TAS3061 36×44 TAS3061 40×50 TAS3061 42×50 TAS3061 50×60 TAS3061 52×62 TAS3061 60×68 TAS3061 70×80 TAS3061 80×95 TAS3061 85×105 TAS3061 90×105 TAS3061 100×120 TAS3061 110×130 TAS3061 110×135 TAS3061 120×135 TAS3061 130×150 TAS3061 125×155
|
| |
|
|
